Double Side Sticker Labelling Machine

Not only Single, We Take Care of Both Side of Your Labeling Needs

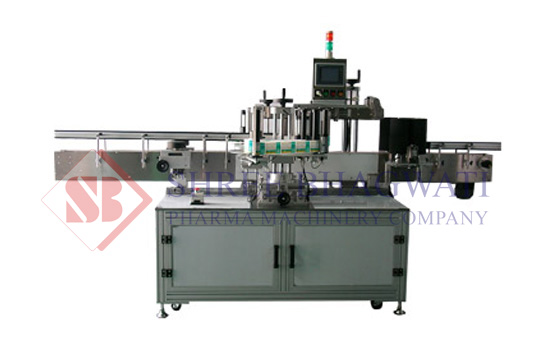

Double Side Sticker Labelling Machine
The double side sticker labeling machine is simple to use and easy to maintain. This multi purpose equipment is suitable for applying sticker labels on the front and back side of bottles, jars, etc.; which are round, flat, oval, rectangular, or square in shape. It is a multi pack linear machine with a uniquely designed continuous movement, pocket type bottle alignment system. This double side labeling machine model is perfectly suitable for applying labels on both sides of bottles and containers of various shapes and sizes. It has an output of up to 120 labels in a minute, based on the label and product size. The labeling speed is also dependent on the stable motion of the product on the conveyor of the equipment, at a relatively higher speed. Further, the automatic product alignment system is fully synchronized with the top holding belt system, to provide maximum stability and vertical positioning of the bottles with different shapes. It even incorporates the most modern label dispensing system and a simple sensing system for labels and products. This highly robust, effective, fast, precise and long lasting machine fulfils the diverse needs of several users of such modern packaging equipments. Besides this elegantly designed linear labeling machine has easy to use adjustments, and requires least changing of tools and parts. It also has a feed worm system and moving pocket system that enables the perfect alignment of the containers on the conveyor for a highly accurate labeling. This model is suitable for virtually all types of bottles utilized for cosmetics and OTC products. Moreover, the double side labeling equipment can be specially designed to apply single, and body, wrap around labels on various types of containers. Additionally it can apply labels on both the front and the back side of many types of containers; in a single run.
  • No Label Data Input/retrievals require for any Label Size
  • No Change Parts for Label size, Star Wheel require for Feeding Hopper
  • Single Pot On-line Speed Variation control
  • Synchronized speed of Label Dispensing, Conveyor and Pressing Device
  • Virtually Maintenance free machine
  • Easy to change label application height
  • User Friendly Label Placing Adjustments
  • Self Protected against Voltage Fluctuations
  • Suitable for On-Line InkJet and Contact Coding System
  • Suitable for Partial, Full Wrap Around and Overlap Labelling
  • Built In A.C. Variable Frequency Drive System.
  • Ully Stainless Steel finish Machine
Label Height 8 mm to 70/90/120/150 mm Standard*
Label Length 12 mm Minimum
Label Roll Dia. 300 mm
Core Dia. 75/76 mm
Gap Between two Labels appx. 3 mm
Label Accuracy + 1mm to 1.5mm
Product Size As per customers requirements*Feed Worm and Pocket System require for change in Product Size for Special Machine
Electrical 220 VAC Single Phase Power Supply (50/60 Hz)
Power 2.0 Amp.
Capacity 0.75 Kw
Speed Up to 120 Labels per minute depending on Product and Label Size. The speed is also depending on stable movement of product on machine conveyor at higher speed.
Conveyor height 830-875 mm*
Overall dimension 2580 mm(L) X 1500 mm(W) X 1500 mm (H)
Machine Direction of Movement

MACHINE’S MATERIAL OF CONSTRUCTION

Machine Main Base Frame Mild Steel or Stainless Steel 304
Machine Coverings Complete in Stainless Steel 304
Product Contact Parts Stainless Steel 304
Non Contact Parts Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable)
Conveyor Belt Rubber Belt (Stainless Steel – for heavy products)
Conveyor Shafts Mild Steel with Hard Chrome or Zinc Plating
Conveyor Sprockets Mild Steel or Nylon
Bearings SKF / Niche / Equivalent
Plating(Wherever Applicable) ENP / Zinc / Hard Chrome / Blackening
TOP Conveyor Belt Timing Sponge Belt
Guide Rod & Pin Stainless Steel 304
Dispenser Rollers Rubber Molded + Aluminum + Knurling Rollers
Dispenser Unit Up & Down Screw Based UP & DOWN Assembly
