Single Side Sticker Labelling Machine (Labeler)

Leader in Front Side Sticker Labeling Technology

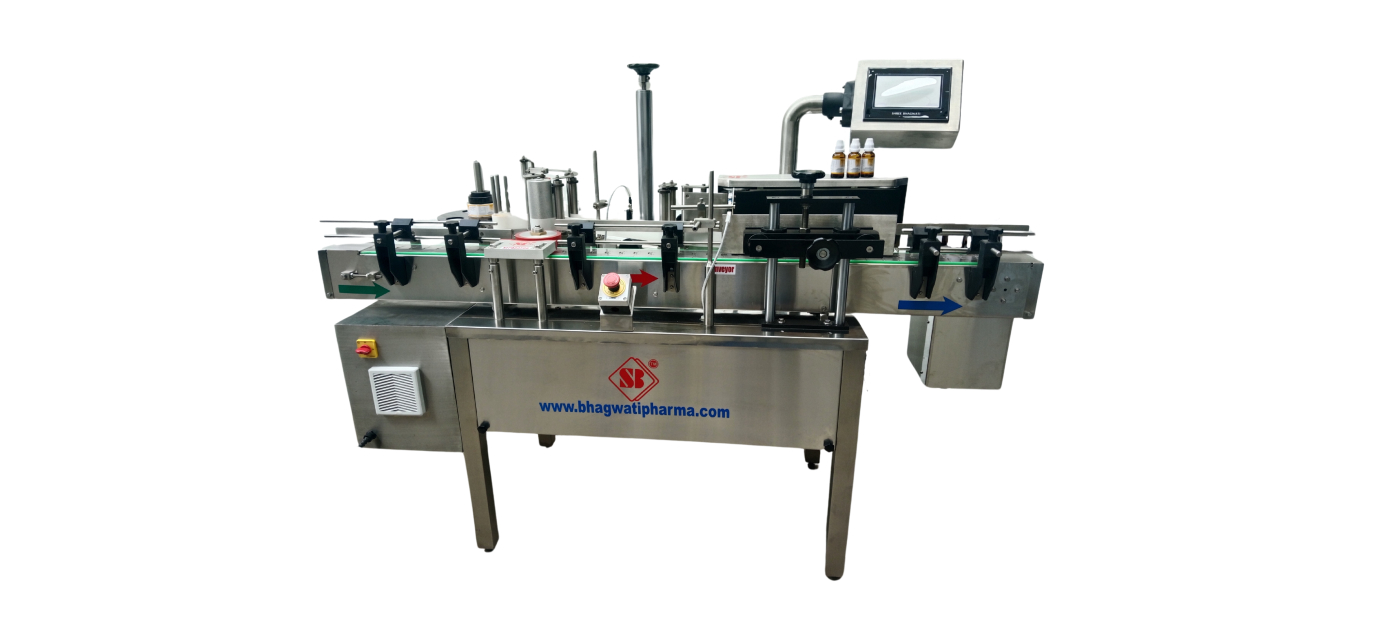

Single Side Flat Sticker Labelling Machine
This single side sticker labeling machine is highly versatile and very user friendly. It is suitable for labeling on one side of bottles and other containers of various shapes and sizes. The equipment has a labeling capacity of up to 150 products in a single minute. Moreover, the speed even depends on the steady motion of the products on the machine’s conveyor at a relatively higher speed. This automated, vertical and linear sticker labeling machine also has an exclusive and specially designed pocket type bottle alignment system. Further, this latest product alignment system is synchronized with the top holding belt system, in order to assure maximum stability and straight positioning of bottles with various dimensions. It even includes the most modern system for dispensing labels; along with an easy to use sensing system for labels and products. This ultra modern machinery actually fulfils the diverse requirements of several users that need the latest range of packaging equipments. Besides, the machine is also highly efficient, very speedy, precise and durable. It also incorporates very simple adjustments, and requires least changing of tools and parts. Another salient feature of this equipment is the feed worm system and moving pocket system, which helps to accurately align the bottles on the conveyor for precisely applying the labels. This multipurpose machine is suitable for virtually all kinds of bottles utilized for cosmetics and many OTC products. Moreover, this model has a synchronized as well as exceptional, single point speed control system. The inherent label length detection system even helps to prevent the manual feeding and storing of the label length details in the memory; and also retrieving the same data when the label size is changed and the equipment is restarted. This automatic system avoids machine down time, and also helps to obtain higher production.

SPECIFICATION OF THE EQUIPMENT MACHINE’S BASICS

Machine Name Single Side Vertical labelling Machine
Model Servo Based Machine
Production Speed Per Minute Up to 120 Products per Minute (Speed Depends up on the Size of the Product and label length).
Number of Labeling Dispenser 1 Labeling Dispenser Head
Suitable for Products Round Bottle
Application Labeling on Single side of container
Labels Requirement Self Adhesive Sticker Labels in Roll Form having consistence 3 mm gaps between the 2 labels.
Label Material Self Adhesive Cromo Paper Labels
Label Roll Outer Diameter Maximum 300 mm
Label Core ID 75 mm
Label Dispensing Accuracy +1 mm
Container Holding Unit Belt Type Spring Based Top Conveyor.
Working Height 850 mm (+50 mm)
Conveyor Length 6 Feet
Machine Weight Approx 350 Kgs
Machine Dimension Approx 8 (L) x 7 (W) x 5 (H) – in Feet
Transparent Sensor Extra Cost
Silent Feature Ø  S.S. 304 construction including main machine frame.

Ø  Built in product counter.

Ø  “No Container – No Label” an electronic sensing device avoids wastage of labels.

Ø  Machine is suitable for round container for wrap around labeling with the help of Change Parts.

Ø  Easy to change label application height

Ø  Built In A.C. Variable Frequency Drive System.

Ø  In compliance with cGMP.

MACHINE’S MATERIAL OF CONSTRUCTION

Machine Main Base Frame Mild Steel or Stainless Steel 304
Machine Coverings Complete in Stainless Steel 304
Product Contact Parts Stainless Steel 304
Non Contact Parts Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable)
Conveyor Belt Rubber Belt (Stainless Steel – for heavy products)
Conveyor Shafts Mild Steel with Hard Chrome or Zinc Plating
Conveyor Sprockets Mild Steel or Nylon
Bearings SKF / Niche / Equivalent
Plating(Wherever Applicable) ENP / Zinc / Hard Chrome / Blackening
Guide Rod & Pin Stainless Steel 304
Dispenser Rollers Rubber Molded + Aluminum + Knurling Rollers
Dispenser Unit Up & Down Screw Based UP & DOWN Assembly
