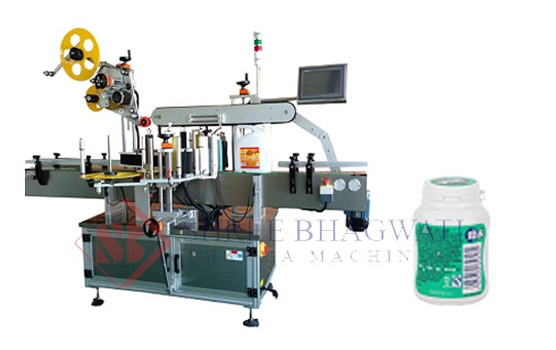

Top + front & back sides labeling machine -three head labeling
machine for bottle
Be Assured of Top Quality for Top & Bottom Side Labelling
SPECIFICATION OF THE EQUIPMENT MACHINE’S BASICS
| PARTICULAR | SPECIFICATION |
| Machine Name | Top + front & back sides labeling machine, Three head labeling machine for bottle |
| Capacity (pcs/min） | 20-100 |
| Nos of Labeling Head | 3 Nos |
| Conveyor Speed（m/min） | ≤40 |
| Application | Top + front & back side |
| Labels Requirement | Self Adhesive Sticker Labels in Roll Form having consistence 3 mm gaps between the 2 labels. |
| Label Material | Self Adhesive Paper Labels |
| The size of label | Width 15-150 mm length 15-300 mm |
| Label Roll Outer Diameter | Maximum 300 mm |
| Label Core ID | 75 mm |
| Label Dispensing Accuracy | +1 mm |
| The size of label object | Can customized as label objects |
| Working Height | 860 mm (+/-50 mm) |
| Conveyor Length | 12 Feet (Size can be changed if require any modification as bottle/jar) |
| Machine Weight | Approx 650 Kgs |
| Machine Dimension | Approx 12 (L) x 5 (W) x 4 (H) – in Feet |
MACHINE’S MATERIAL OF CONSTRUCTION
| PARTICULAR | SPECIFICATION |
| Machine Main Base Frame | Stainless Steel 304 Pipe Structure |
| Machine Coverings | Complete in Stainless Steel 304 |
| Product Contact Parts | Stainless Steel 304 |
| Non Contact Parts | Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable) |
| Conveyor Slat | Stainless Steel 304 Slat with Nylon Strips on Side |
| Conveyor Shafts | Mild Steel with Hard Chrome or Zinc Plating |
| Conveyor Sprockets | Mild Steel or Nylon |
| Bearings | SKF / Niche / Equivalent |
| TOP Conveyor Belt | Timing Sponge Belt |
| Plating(Wherever Applicable) | Zinc / Hard Chrome / Blackening |
| Guide Rod & Pin | Stainless Steel 304 |
| Dispenser Rollers | Rubber Molded + Aluminum + Knurling Rollers |
| Dispenser Unit Up & Down | Screw Based UP & DOWN Assembly |
