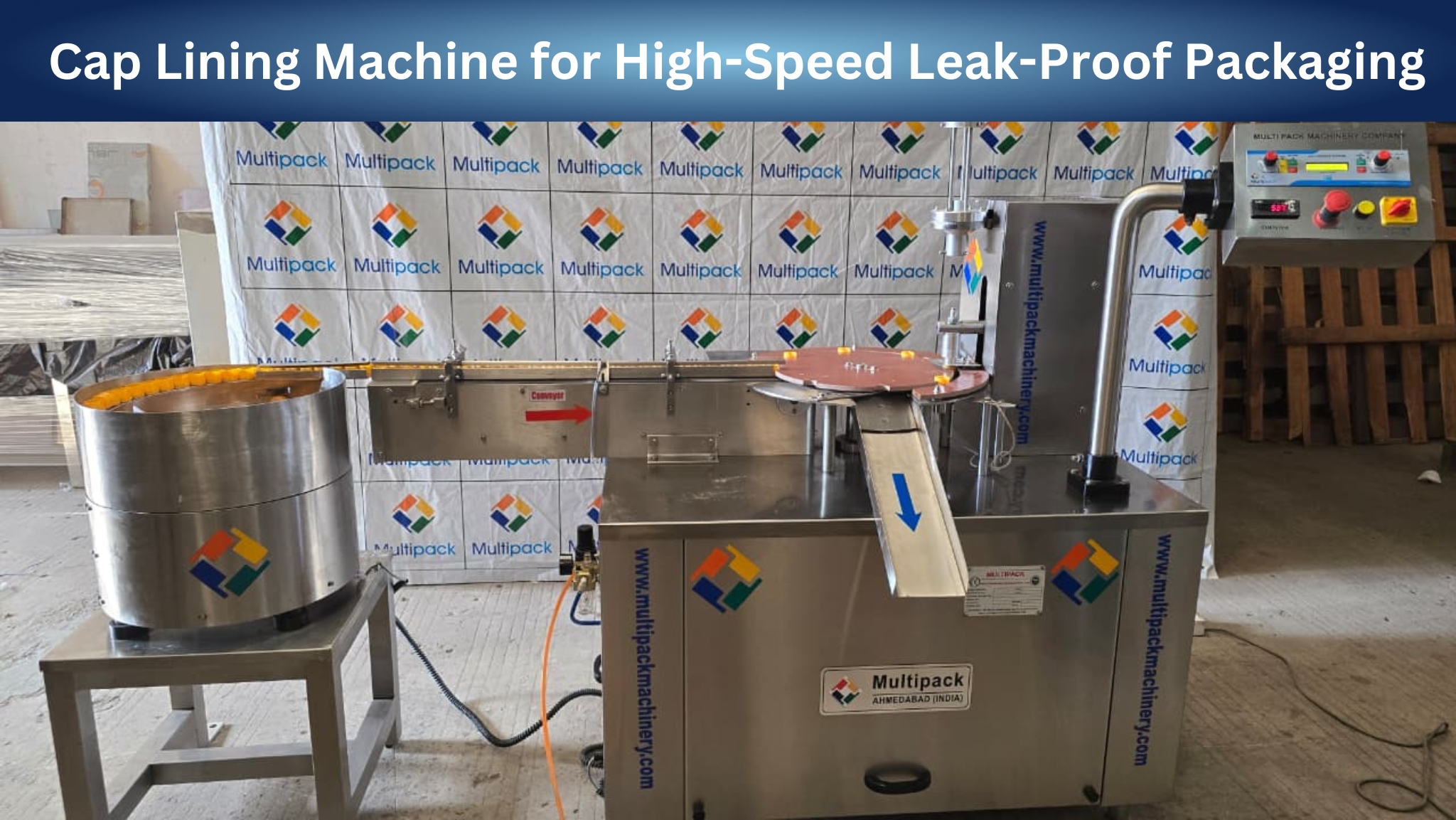

Introduction to Automatic Wad Inserting Machine / Cap Lining Machine
The Automatic Wad Inserting Machine / Cap Lining Machine plays a crucial role in modern packaging industries. It ensures that every cap is perfectly lined with a wad or liner, preventing leakage and maintaining product integrity. From pharmaceuticals to food products, this machine has become a backbone of safe and hygienic packaging.
In today’s fast-paced manufacturing environment, businesses need solutions that are efficient, accurate, and reliable. That’s where automated cap lining machines shine—they combine speed with precision, reducing errors and improving overall productivity.
What is a Wad Inserting Machine?
A wad inserting machine is an automated system designed to place liners inside caps before they are sealed onto containers. These liners act as protective barriers, ensuring that the product remains uncontaminated and leak-proof.
These machines handle various types of wads, including:
- EPE liners
- Induction seals
- Foam liners
By automating the process, manufacturers can achieve consistent quality without relying on manual labor.
Importance of Cap Lining in Packaging
- Prevents leakage during transportation
- Maintains product freshness
- Provides tamper evidence
- Enhances brand reliability
Key Features of Automatic Wad Inserting Machine / Cap Lining Machine
Modern machines come equipped with advanced features that make them indispensable in production lines.
Fully Automatic System
These machines operate with minimal human intervention. Once configured, they handle the entire process—from cap feeding to wad insertion—smoothly and efficiently.
High-Speed Operation
Speed is a major advantage. Most machines can process between 100 to 300 caps per minute, depending on the configuration. This significantly boosts production capacity.
No Cap – No Wad Technology
This intelligent feature ensures that no wad is inserted unless a cap is present. It minimizes wastage and ensures operational efficiency.
Durable SS 304 Construction
Built using stainless steel (SS 304), these machines are:
- Corrosion-resistant
- Hygienic
- Suitable for cGMP environments
Read Our Article
Automatic Carton Twin Side Security Sticker Labelling MachineTechnical Specifications Overview
Understanding the technical aspects helps businesses choose the right machine for their needs.
Machine Capacity and Output
- Output: Up to 300 caps per minute
- Depends on cap size and liner type
Cap Size Compatibility
- Range: 20 mm to 120 mm
- Suitable for various industries
Power and Control Systems
- Power consumption: 1–2 KW
- PLC-based control system
- Optional HMI for easy operation
Working Principle Explained
The working mechanism of the Automatic Wad Inserting Machine / Cap Lining Machine is both simple and efficient.
Cap Feeding Process
Caps are loaded into a hopper, which feeds them into the system automatically. This ensures a continuous flow of caps without manual intervention.
Wad Placement Mechanism
A precision pick-and-place system selects the wad and inserts it into the cap. The machine ensures accurate alignment every time.
Final Output and Discharge
After insertion, the caps are pressed to secure the wad and then discharged, ready for the capping process.
Industrial Applications
These machines are widely used across multiple sectors.
Pharmaceutical Industry
- Syrup bottles
- Tablet containers
- Ensures contamination-free packaging
Food and Beverage Sector
- Edible oils
- Sauces and condiments
- Beverage bottles
Chemical and Cosmetic Industries
- Pesticides
- Liquid chemicals
- Creams and lotions
Our Other Product
Vial Sticker Labelling MachineTypes of Wad Inserting Machines
Different industries require different configurations.
Automatic Machines
Fully automated systems designed for high-volume production lines.
Semi-Automatic Systems
Ideal for small-scale operations with moderate production needs.
Rotary Wad Inserters
High-speed machines designed for large-scale manufacturing.
Advantages of Using Cap Lining Machines
Leak-Proof Packaging
Ensures that products remain sealed and safe during storage and transport.
Reduced Manual Labor
Automation reduces dependency on manual workers, cutting labor costs.
Improved Product Shelf Life
Proper sealing helps maintain freshness and extends shelf life.
Optional Features and Customization
Manufacturers can enhance machine functionality with optional features.
Vision Inspection Systems
Detect missing or improperly placed wads for quality assurance.
Cap Feeding Systems
Automated elevators ensure continuous cap supply.
Integration with Production Lines
Machines can be integrated with capping and filling systems for seamless operation.
Read Our Article
Automatic Carton Twin Side Security Sticker Labelling MachineWhy Choose SHREE BHAGWATI
Global Presence
With over 12,000 installations and exports to 45+ countries, SHREE BHAGWATI is a trusted name in packaging machinery.
Custom Engineering Solutions
They offer tailored solutions to meet specific industry requirements, ensuring maximum efficiency and performance.
Maintenance and Operational Tips
To keep your machine running smoothly:
- Perform regular cleaning
- Check moving parts for wear
- Lubricate components periodically
- Train operators properly
Routine maintenance ensures long-term reliability and performance.
Future Trends in Packaging Automation
The future of packaging lies in smart automation. Emerging trends include:
- AI-based inspection systems
- IoT-enabled machines
- Energy-efficient designs
- Fully integrated production lines
These innovations will further enhance efficiency and reduce operational costs.
Conclusion
The Automatic Wad Inserting Machine / Cap Lining Machine is a game-changer in the packaging industry. It ensures precision, speed, and reliability, making it an essential investment for businesses aiming for high-quality production.
From improving product safety to reducing operational costs, this machine delivers unmatched benefits. As industries continue to move toward automation, adopting such advanced solutions is not just an option—it’s a necessity.
