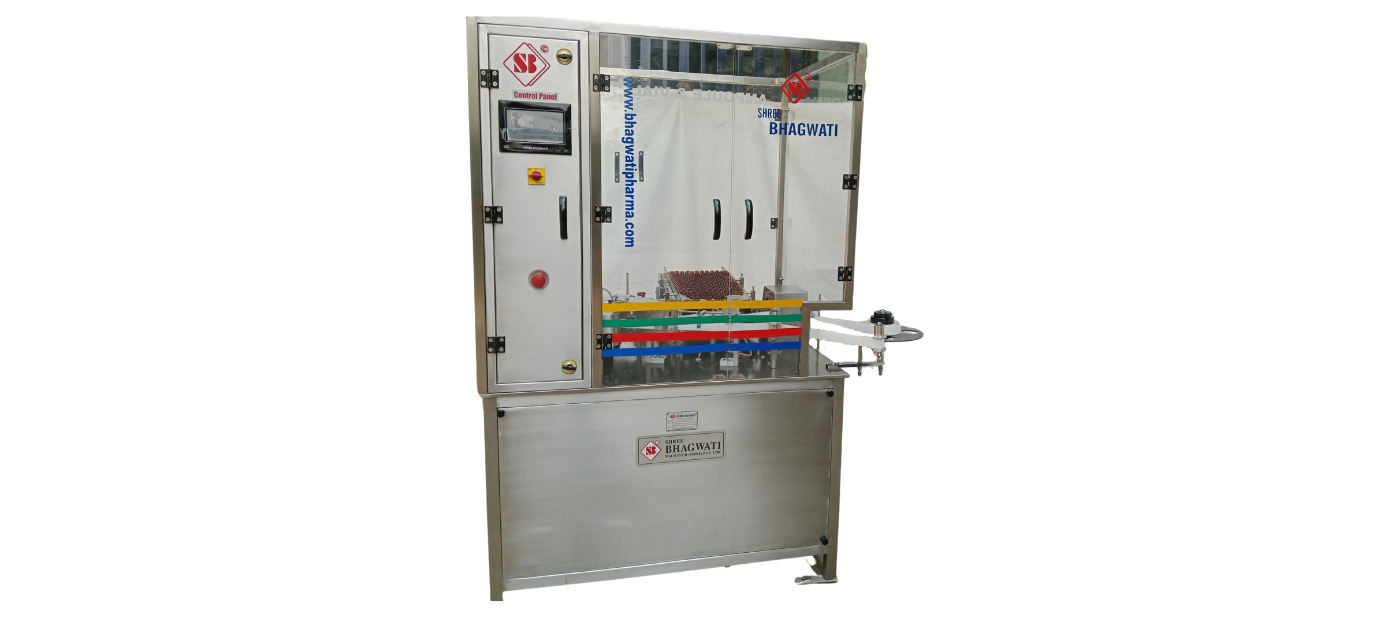

Ampoules and Vials Sticker Labeler

SBRSL-300

We Believe in Machine that Explores Potential & Meets Expectation

This sticker labeling machine is utilized for labeling round ampoules, vials, and many other round shaped objects. Hence it is also referred as ampoule labeling machine. It is very sturdy, highly user friendly and virtually maintenance free. This SBRSL-300 model also includes an advanced micro processor controlled label dispensing system and a sensing system for labels and products. The machine has the capability to label maximum 300 products per minute, based on the product and label size. It even incorporates a specially designed mechanical and electronic system for applying transparent / no look labels on ampoules and vials, at a very high speed using an optional label sensing system. This is the only high speed rotary sticker labeling machine in India, with a distinct single point synchronized speed control system. Hence it has the highest installation in India. The inherent, preset label length detection system helps to eliminate the manual feeding and storage of label length details in the memory and retrieving the same data, every time for changing the label size and restarting the equipment. It thereby, saves your time, prevents machine down time, and assists to increase the production. The other salient features include, the exclusive feeding device for ampoules and vials in vertical position directly from the trays; and also collecting the labeled products similarly in a vertical position in the trays. Moreover the user can even feed the ampoules/vials online for labeling without stopping the equipment. This latest feeding system thus eliminates the inconvenient and lengthy method of labeling ampoules/vials at the time of loading the products. It can be supplied with an online, linear packing line for vials that can be directly connected with the capping machine or turn table for constant feeding. This model is also available with an optional tough acrylic or glass safety cabinet.
  • No Label Data Input/retrievals require for any Label Size
  • No Change Parts for Label size
  • Single Pot On-line Speed Variation control
  • Synchronized speed of Label Dispensing, Product Feeding and Pressing Device
  • Virtually Maintenance free machine
  • Easy to change label application height
  • User Friendly Label Placing Adjustments
  • Self Protected against Voltage Fluctuations
  • Suitable for On-Line Inkjet and Contact Coding System
  • Suitable for Partial, Full Wrap Around and Overlap Labelling
  • Built In A.C. Variable Frequency Drive System.
  • Fully Stainless Steel finishes Machine
Labelling accuracy ±1mm
PLC Programmable Logic Controller Unit – DELTA Make
Touch Screen Delta Make Touch screen
Stepper Motor Sanyo denki stepper motor – Japan make
Servo Motor Panasonic / Delta Make
Microprocessor Microprocessor controller by Bhagwati make
Sensors ( Product / Label ) Leuze – USA or Sick Germany make
AC Drive ( Variable Speed) Delta Make
All Electrical / Electronic cables Labb – Germany make
Pneumatic cylinders SMC / Festo make
Label Height 8 mm to 50/70/90 mm Standard*
Label Length 12 mm Minimum
Label Roll Dia. 400 mm
Core Dia. 75/76 mm
Gap Between two Labels Appx. 3 mm
Product Diameter Up to 25 mm*
Electrical 220 VAC Single Phase Power Supply (50/60 Hz)
Power 2.5 Amp.
Capacity 0.75 Kw
Speed Up to 300 Labels per minute depending on Product and Label Size
Product Feeding Hopper height 850 mm*

MACHINE’S MATERIAL OF CONSTRUCTION

Machine Main Base Frame Stainless Steel 304 Pipe Structure
Machine Coverings Complete in Stainless Steel 304
Product Contact Parts Stainless Steel 304
Non Contact Parts Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable)
Star-wheel Stainless steel with Teflon/stainless steel roller
Feed worm Teflon
Tray for infeed Stainless Steel with chain type conveyor
Tray for outfeed Stainless Steel
Bearings SKF / Niche / Equivalent
Plating(Wherever Applicable) Zinc / Hard Chrome / Blackening
Wrapping Belt End Less Sponge Coated Wrapping Belt
Bottle Separation / Spacing Unit Teflon Feed worm
Dispenser Rollers Rubber Molded + Aluminum + Knurling Rollers
Dispenser Unit Up & Down Screw Based UP & DOWN Assembly
  • Label Roll Empty – Machine Stop System with Alarm
  • Missing Label in Roll – Machine Stop System with Alarm
  • Special Label Sensor for sensing Transparent Film Labels which does not have any sensing mark on it.
  • Option of Contact Coder, Hot Foil Coder, HP Cartridge Coder and Inkjet Coder with various speed ranges available.
  • Toughened Glass or Acrylic Safety Cabinet for Machine
  • Tower Light showing the machine status / operation
  • Colour or Mono Touch Screen with PLC for machine operation and showing various error messages and information on display
  • Special Sensing system for checking missing label on product
  • Low Compressed Air – Machine Stop with Alarm system for pneumatically operated coding system
  • Visison System for checking Barcode, presence or absence of Coding or Pharma code on labels
  • Vision System with OCR system for checking coding on labels
  • Online pneumatically operated product rejection system
