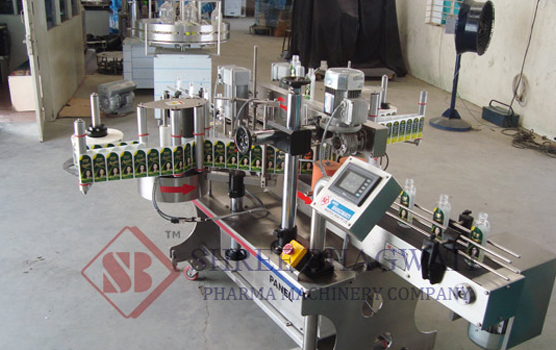

Double side (front and back) Sticker label applicator

Not only Single, We Take Care of Both Side of Your Labeling Needs

The vial sticker labeling machine is completely automatic and can be operated at extremely high speeds. Moreover this SBSL–300 model is very user friendly, and also has several other outstanding features. In fact, it is built using the most modern micro processor controlled label dispensing system. The vial labeling machine also includes the latest sensing system for labels, and many other products. It is therefore regarded as the ideal machine for labeling round vials, small sized bottles, and several other round objects; which are made from glass, plastic, PET, HDPE, PP, etc. This swift and sturdy equipment has the ability to label at the most 300 units in a single minute; based on the diameter of the product and size of the label. Further, the roller spacing device of this totally automatic vial sticker labeling machine, results in a simple no parts change system. In addition to this, it also helps you to do away with the star wheel or feed worm for evenly separating the products. Besides this SBSL–300 vial labeler machine even incorporates an exceptional, single point synchronized speed control system. Moreover, it also has a programmed label length detecting system. This built-in mechanism thus helps to avoid the manual feeding and storing of the label length data into the memory; and again retrieving that information every time, when you want to change the label size and restart the vial labelling machine. As a result this automated system helps to save your time by preventing machine downtime, and also increases the efficiency. These vial labeling machines are even available with an optional tough glass, or acrylic safety cabinet. This advanced vial labelling equipment actually includes all the basic features that are required in a standard machine, to meet the diverse needs of the customers in the local and global market.
  • No Label Data Input/retrievals require for any Label Size
  • No Change Parts for Product and Label size
  • Single Pot On-line Speed Variation control
  • Synchronized speed of Label Dispensing, Conveyor and Pressing Device
  • Virtually Maintenance free machine
  • Easy to change label application height
  • User Friendly Label Placing Adjustments
  • Self Protected against Voltage Fluctuations
  • Suitable for On-Line Inkjet and Contact Coding System
  • Suitable for Partial, Full Wrap Around and Overlap Labelling
  • Built In A.C. Variable Frequency Drive System.
  • Fully Stainless Steel finishes Machine
Labelling accuracy ±1mm
PLC Programmable Logic Controller Unit – DELTA Make
Touch Screen Delta Make Touch screen
Stepper Motor Sanyo denki stepper motor – Japan make
Servo Motor Panasonic / Delta Make
Microprocessor Microprocessor controller by Bhagwati make
Sensors ( Product / Label ) Leuze – USA or Sick Germany make
AC Drive ( Variable Speed) Delta Make
All Electrical / Electronic cables Labb – Germany make
Pneumatic cylinders SMC / Festo make
Label Height 8 mm to 70 mm Standard*
Label Length 12 mm Minimum
Label Roll Dia. 400 mm
Core Dia. 75/76 mm
Gap Between two Labels Appx. 3 mm
Product Diameter 14 mm to 85 mm*
Electrical 220 VAC Single Phase Power Supply (50/60 Hz)
Power 1.5 Amp.
Capacity 0.75 Kw
Speed Up to 300 Labels per minute depending on Product and Label Size. The speed is also depending on stable movement of product on machine conveyor at higher speed.
Conveyor height 830-875 mm*
Direction of Movement Left to Right from operator side

MACHINE’S MATERIAL OF CONSTRUCTION

Machine Main Base Frame Mild Steel or Stainless Steel 304
Machine Coverings Complete in Stainless Steel 304
Product Contact Parts Stainless Steel 304
Non Contact Parts Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable)
Conveyor Belt Rubber Belt (Stainless Steel – for heavy products)
Conveyor Shafts Mild Steel with Hard Chrome or Zinc Plating
Conveyor Sprockets Mild Steel or Nylon
Bearings SKF / Niche / Equivalent
Plating(Wherever Applicable) ENP / Zinc / Hard Chrome / Blackening
TOP Conveyor Belt Timing Sponge Belt
Guide Rod & Pin Stainless Steel 304
Dispenser Rollers Rubber Molded + Aluminum + Knurling Rollers
Dispenser Unit Up & Down Screw Based UP & DOWN Assembly
  • Label Roll Empty – Machine Stop System with Alarm
  • Missing Label in Roll – Machine Stop System with Alarm
  • Special Label Sensor for sensing Transparent Film Labels which does not have any sensing mark on it.
  • Option of Contact Coder, Hot Foil Coder, HP Cartridge Coder and Inkjet Coder with various speed ranges available.
  • Toughened Glass or Acrylic Safety Cabinet for Machine
  • Tower Light showing the machine status / operation
  • Colour or Mono Touch Screen with PLC for machine operation and showing various error messages and information on display.
  • Special Sensing system for checking missing label on product
  • Low Compressed Air – Machine Stop with Alarm system for pneumatically o- operated coding system
  • Visison System for checking Barcode, presence or absence of Coding or pharma code on labels
  • Vision System with OCR system for checking coding on labels
  • Online pneumatically operated product rejection system
  • Turn Table and Packing Conveyor
