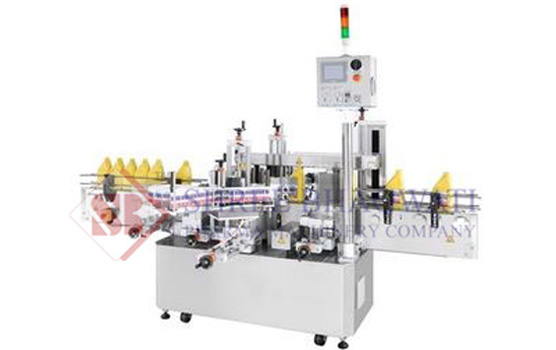

Double side Sticker Labelling machine for Oval Bottle

Not only Single, We Take Care of Both Side of Your Labeling Needs

The double side labelling machine for oval bottles is totally automated and also extremely user-friendly. This vertical and linear equipment is useful for applying labels on the front as well as back side of oval shaped bottles and containers. It is especially designed in order to provide a continuous motion for the pocket type bottle alignment system. This double side labeling machine can deliver an output of up to 100 labels in one minute, based on the label and product size. The labeling speed also depends on the uniform movement of the product on the machine’s conveyor at higher speeds. Further, it even incorporates an automatic system for product alignment, which is synchronized with the top holding belt system for ensuring highest stability and proper positioning of the oval shaped bottles. The double side labelling equipment also has a label dispensing system and a modern system for sensing the labels and products. This multi-purpose labeling machine fulfils the needs of numerous users of latest packaging lines. Besides, the machine has easy to use adjustments, thus it requires minimum changing of tools or components. It is also very perfect and long- lasting. Moreover the moving pocket system, and the feed worm system ensures accurate alignment of the bottles on the conveyor, to precisely label different types of bottles utilized for many OTC products and cosmetics. This simple double side labeling machine model even has an inbuilt single point synchronized speed control system. Additionally the integrated and pre-programmed label length detection system helps to eliminate manual input and storage of label length data in the memory and retrieving the same details every time the label size is changed and the machine is restarted. This double side labelling system hence reduces your cost, and saves time, avoids machine down time, and increases the production. It is also available with an optional acrylic or glass safety cabinet.
  • No Label Data Input/retrievals require for any Label Size
  • No Change Parts for Product and Label size
  • Single Pot On-line Speed Variation control
  • Synchronized speed of Label Dispensing, Conveyor and Pressing Device
  • Virtually Maintenance free machine
  • Easy to change label application height
  • User Friendly Label Placing Adjustments
  • Self Protected against Voltage Fluctuations
  • Suitable for On-Line Inkjet and Contact Coding System
  • Suitable for Partial, Full Wrap Around and Overlap Labelling
  • Built In A.C. Variable Frequency Drive System.
  • Fully Stainless Steel finish Machine
Label Height 8 mm to 70/90/120/150 mm Standard*
Label Length 12 mm Minimum
Label Roll Dia. 300 mm
Core Dia. 75/76 mm
Gap Between two Labels Appx. 3 mm
Labeling accuracy ±1mm
PLC Programmable Logic Controller Unit – DELTA Make
Touch Screen Delta Make Touch screen
Stepper Motor Sanyo denki stepper motor – Japan make
Servo Motor Panasonic / Delta Make
Microprocessor Microprocessor controller by Bhagwati make
Sensors ( Product / Label ) Leuze – USA or Sick Germany make
AC Drive ( Variable Speed) Delta Make
All Electrical / Electronic cables Labb – Germany make
Pneumatic cylinders SMC / Festo make
Product Size As per customers requirements*
Feed Worm and Pocket System require for change in Product Size
Electrical 220 VAC Single Phase Power Supply (50/60 Hz)
Power 5.0 Amp.
Capacity 2.0 Kw
Speed Up to 100 Labels per minute depending on Product and Label Size. The speed is also depending on stable movement of product on machine conveyor at higher speed.
Conveyor height 830-875 mm*
Machine Direction of Movement Left to Right from operator side

MACHINE’S MATERIAL OF CONSTRUCTION

Machine Main Base Frame Mild Steel or Stainless Steel 304
Machine Coverings Complete in Stainless Steel 304
Product Contact Parts Stainless Steel 304
Non Contact Parts Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable)
Conveyor Belt Rubber Belt (Stainless Steel – for heavy products)
Conveyor Shafts Mild Steel with Hard Chrome or Zinc Plating
Conveyor Sprockets Mild Steel or Nylon
Bearings SKF / Niche / Equivalent
Plating(Wherever Applicable) ENP / Zinc / Hard Chrome / Blackening
TOP Conveyor Belt Timing Sponge Belt
Guide Rod & Pin Stainless Steel 304
Dispenser Rollers Rubber Molded + Aluminum + Knurling Rollers
Dispenser Unit Up & Down Screw Based UP & DOWN Assembly
  • Label Roll Empty – Machine Stop System with Alarm
  • Missing Label in Roll – Machine Stop System with Alarm
  • Special Label Sensor for sensing Transparent Film Labels which does not have any sensing mark on it.
  • Option of Contact Coder, Hot Foil Coder, HP Cartridge Coder and Inkjet Coder with various speed ranges available.
  • Low Compressed Air – Machine Stop with Alarm system for pneumatically o- operated coding system
  • Turn Table and Packing Conveyor

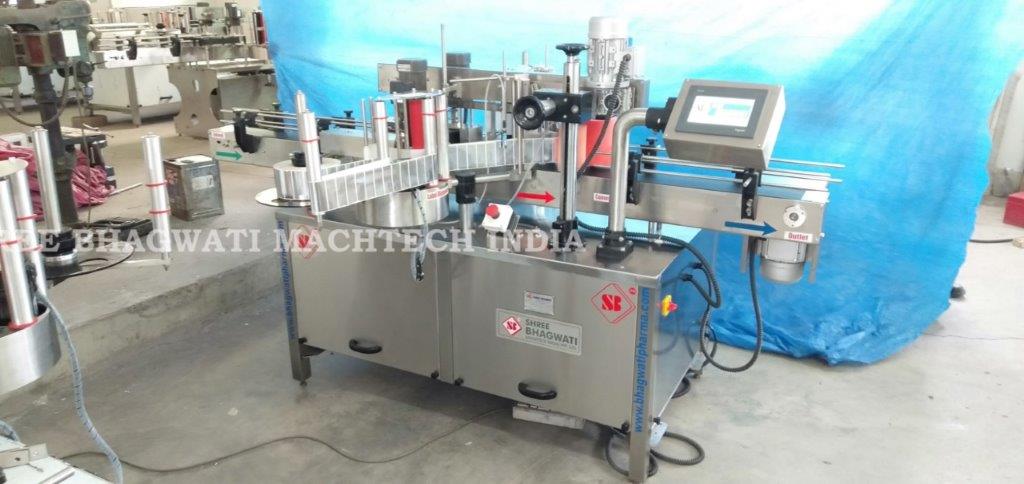

Double Side Labeling Machine Front and Back Labeller Machine
