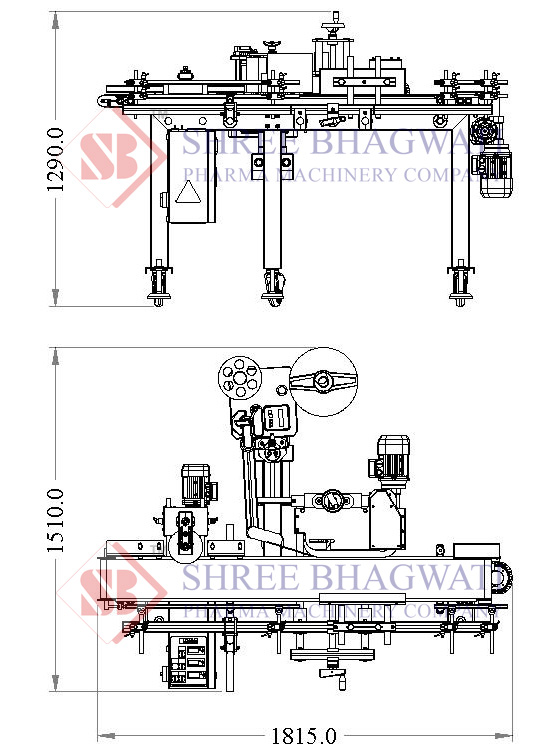

Jar sticker labeler machine – Jar Labelling Machine
The jar labeler machine is a single side sticker labeling machine. This versatile jar labelling equipment can apply labels on the top, front and back side of jars, bottles, and many other objects of various dimensions. It is a high speed, robust machine and also very user friendly. The jar labelling machine incorporates the most modern sensing system for labels and the products; as well as a micro processor controlled system for dispensing the labels. Further the labeling speed of this powerful equipment is up to 150 units per minute, depending on the diameter of the product and size of the label. It can easily and quickly label glass, aluminum, plastic, HDPE, LDPE, PET, PP bottles used for pharmaceuticals, mineral water, food products, pesticides, etc. The positive drive spacing roller of the machine helps to avoid using the feed worm or star wheel to uniformly separate the product, for containers with different shapes and sizes. Moreover, the vertically as well as horizontally adjustable pressing device of the equipment assists in the easy alignment of the height and diameter of the containers. This jar labeler machine has an exceptional single point synchronized speed control system. Besides this the built-in and preset system for detecting the length of the labels enables to do away with the need to manually input and store the information related to length of the labels into the equipment’s memory and even retrieving the same data as and when the label size is changed and the machine is restarted. As a result this automated system helps in saving time, prevents down time of the equipment, reduces overall cost and enhances the machine’s productivity. Moreover the users can use an optional, sturdy glass or acrylic safety cabinet. This jar labeling machine model actually includes all the salient features of a standard machine in the current market.
  • No Label Data Input/retrievals require for any Label Size
  • No Change Parts for Product and Label size
  • Single Pot On-line Speed Variation control
  • Synchronized speed of Label Dispensing, Conveyor and Pressing Device
  • Virtually Maintenance free machine
  • Easy to change label application height
  • User Friendly Label Placing Adjustments
  • Self Protected against Voltage Fluctuations
  • Suitable for On-Line InkJet and Contact Coding System
  • Suitable for Partial, Full Wrap Around and Overlap Labelling
  • Built In A.C. Variable Frequency Drive System.
  • Fully Stainless Steel finish Machine
Label Height 8 mm to 90/120/150 mm Standard*
Label Length 12 mm Minimum
Label Roll Dia. 400 mm
Core Dia. 75/76 mm
Gap Between two Labels appx. 3 mm
Label AccuracyProduct Diameter + 1 mm15 mm to 90 mm*
Electrical 220 VAC Single Phase Power Supply (50/60 Hz)
Power 1.5 Amp.
Capacity 0.75 Kw
Speed Up to 150 Labels per minute depending on Product and Label Size
Conveyor height 830-875 mm*
Machine Direction of Movement Left to Right from operator side

MACHINE’S MATERIAL OF CONSTRUCTION

PARTICULAR SPECIFICATION
Machine Main Base Frame Stainless Steel 304 Pipe Structure
Machine Coverings Complete in Stainless Steel 304
Product Contact Parts Stainless Steel 304
Non Contact Parts Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable)
Conveyor Slat Stainless Steel 304 Slat with Nylon Strips on Side
Conveyor Shafts Mild Steel with Hard Chrome or Zinc Plating
Conveyor Sprockets Mild Steel or Nylon
Bearings SKF / Niche / Equivalent
Plating(Wherever Applicable) Zinc / Hard Chrome / Blackening
Wrapping Belt End Less Sponge Coated Wrapping Belt
Wrapping Guide Sponge Coated Wrapping Guide
Bottle Separation / Spacing Unit Aluminum Roller (Silicon Covered)
Guide Rod & Pin Stainless Steel 304
Dispenser Rollers Rubber Molded + Aluminum + Knurling Rollers
Wrapping Unit Up & Down Screw Based UP & DOWN Assembly
Dispenser Unit Up & Down Screw Based UP & DOWN Assembly
