Label Printing Machine / Batch Coding Machine

Be Assured of Top Quality for Top & Bottom Side Labelling

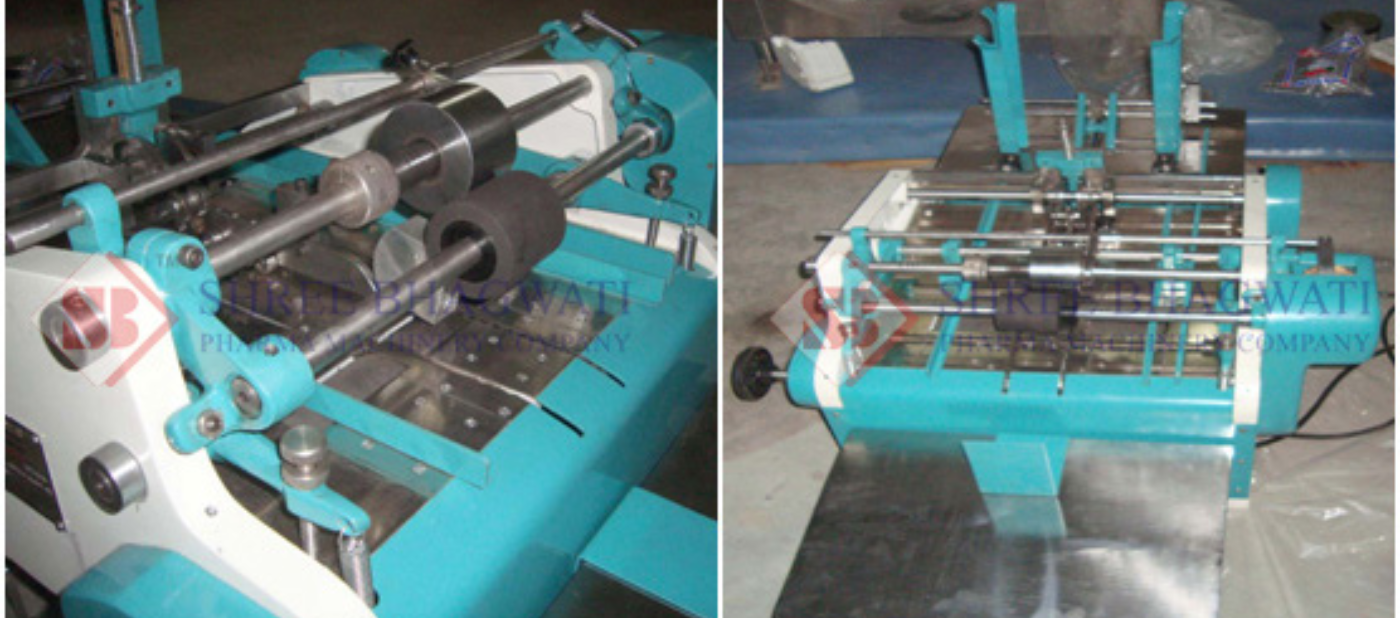

This label printing machine is also known as batch coding machine. It is very robust and highly versatile, and includes lots of user friendly features. This elegantly designed equipment is widely used for printing labels on a variety of products with different shapes and sizes. It has a fully automatic feeding system which enables feeding the labels through a stainless steel feeding wheel. The label is picked up using a rubber wheel and then fed into a timing chain, in order to move the label under the printing head. It is highly useful in the pharmaceutical, as well as many other packaging industries for printing the batch number, manufacturing date, expiry date, maximum retail price, etc; on several types of labels, cartons, pouches, cotton bags, plastic bags, tin bottoms, etc. This equipment can provide an output of 125 to 250 units per minute. The printing ink is first fed on the aluminum roller; and with each stroke of the machine, the composed type letters are then linked by the moving rubber roller. As a result the labels, cartons, bags that are fed on the plate, receive a positive impression of the inked type letters. This automatic model of the batch coding or label printing machine, functions through a powerful electrical motor. It also includes a foot switch to put on and put off the equipment. This helps the user to keep both their hands free; and thus conveniently handle the feeding and discharging of the labels, bags, cartons, etc. This cost effective equipment also save your precious time by avoiding the machine downtime, and even helps to achieve higher output, and reduce overall production cost. It actually incorporates all the primary elements needed in a typical machine, to match the requirements of several users in the domestic and overseas markets.
Labelling accuracy ±1mm
PLC Programmable Logic Controller Unit – DELTA Make
Touch Screen Delta Make Touch screen
Stepper Motor Sanyo denki stepper motor – Japan make
Servo Motor Panasonic / Delta Make
Microprocessor Microprocessor controller
Sensors ( Product / Label ) Leuze – USA or Sick Germany make
AC Drive ( Variable Speed) Delta Make
All Electrical / Electronic cables Labb – Germany make
Pneumatic cylinders SMC / Festo make
Speed Up to 30 to 40 Labels per minute depending on Product and Label Size. The speed is also depending on stable movement of product on machine conveyor at higher speed.
Label Height 8 mm to 70/90/120/150 mm Standard*
Label Length 12 mm Minimum
Label Roll Dia. 300 mm
Label accuracy :±1mm
Core Dia. 75/76 mm
Gap Between two Labels Appx. 3 mm
Product Size As per customers requirements*
Electrical 220 VAC Single Phase Power Supply (50/60 Hz)
Power 2.0 Amp.
Capacity 0.75 Kw
Conveyor height 830-875 mm*
Overall dimension 1830 mm (L) x 910 mm (W) x 1400 mm (H)
Machine Direction of Movement Left to Right from operator side

MACHINE’S MATERIAL OF CONSTRUCTION

PARTICULAR SPECIFICATION
Machine Main Base Frame Stainless Steel 304 Pipe Structure
Machine Coverings Complete in Stainless Steel 304
Product Contact Parts Stainless Steel 304
Non Contact Parts Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable)
Conveyor Slat Rubber belt (Stainless Steel – for heavy box)
Conveyor Shafts Mild Steel with Hard Chrome or Zinc Plating
Conveyor Sprockets Mild Steel or Nylon
Bearings SKF / Niche / Equivalent
Plating(Wherever Applicable) Zinc / Hard Chrome / Blackening
Feeder Belt (If required for customer’s product) Timing Sponge Belt
Guide Rod & Pin Stainless Steel 304
Dispenser Rollers Rubber Molded + Aluminum + Knurling Rollers
Dispenser Unit Up & Down Screw Based UP & DOWN Assembly
  • No change parts for container and label size in standard shaped containers
  • Single Point on-line Speed Variation control system
  • Precise Label Placement Accuracy
  • Built In A.C. Freq. Drive System
  • Output up to 30 to 40 labels per minute.
  • Fully Stainless Steel Finish including main machine frame
