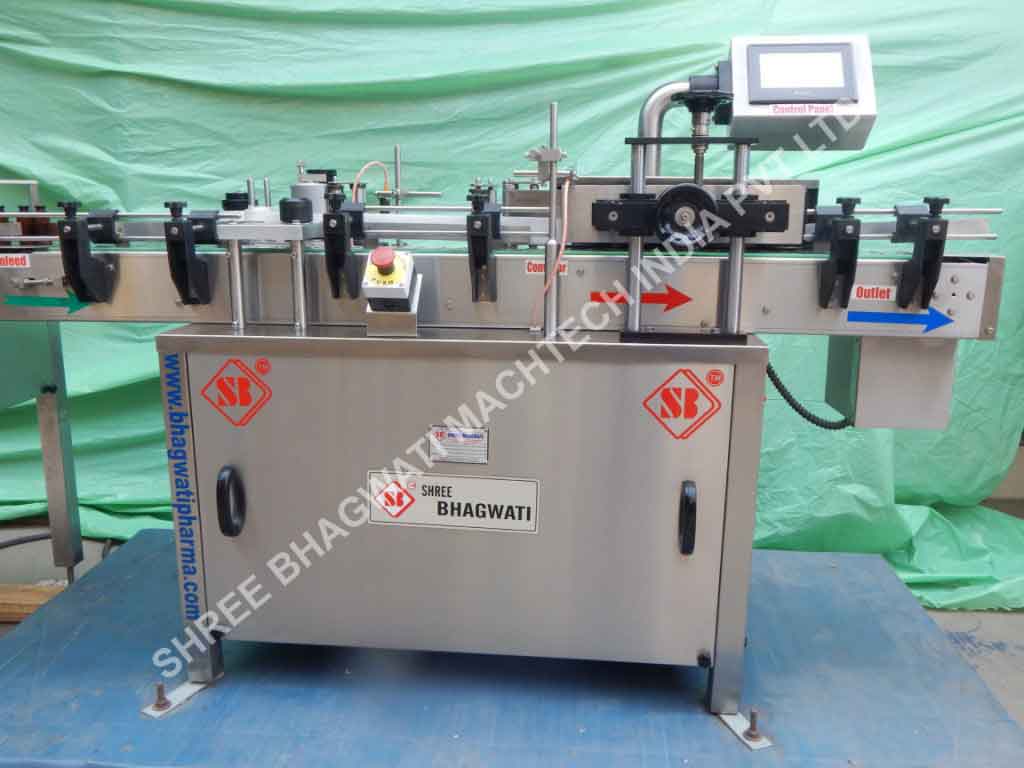

Round Bottle Sticker Labeling Machine

Unmatched Quality & Speed - 100% Solution to Your Labelling Requisites

This round bottle labeling machine is commonly utilized to label cylindrical bottles that are mainly used for several types of beverages, chemicals, pharmaceuticals, etc. It has a robust and compact structure which is easy to operate and also simple to maintain for the users. The sturdy and durable motor of this model is controlled by the latest micro processor. It can also rapidly and accurate drive the labeling head, as well as the controller to convey the labels. Moreover it also incorporates the popular controlling system of Siemens Plc; and the simple human interface can be operated in English as well as Chinese language. Further, you need not change the machine parts for different size of bottles, as it has a multi-purpose detachable set. It even has the most modern online helping system, which enables the users to actually communicate with the equipment. This new system is very user friendly and the workers can just use simple wordings in order to operate the machine. Besides this equipment can run smoothly and constantly for several hours. It has a labeling speed of up to 120 bottles in a single minute, and a very highly labeling accuracy. Whereas the maximum label width is 140 mm, and can also be increased if required. Moreover, this versatile and elegant model of round bottle labeling machine has the capability to label bottles with a diameter ranging from 30 to 110 mm. Further, the equipment has a label roll with an inner diameter of around 75 mm, while the label roll outer diameter is around 350 mm. It also has a fiber optic based sensing system for labels and containers. This machine is highly suitable for applying labels on round shaped bottles made from various kinds of materials such as glass, plastic, HDPE, LDPE, PET, etc.

SPECIFICATION OF THE EQUIPMENT MACHINE’S BASICS

MODEL SBSL-120
Machine Name Round Bottle Sticker Labeling Machine
Model Servo Model
Suitable for Products Pet / Glass / Plastic / HDPE Bottle
Application Wrap Around Labeling on Straight Surface of Round Bottle
Production Speed Per Minute (depends on bottle’s Size, label’s length and material) 120 Bottles per Minute
Labels Requirement Self Adhesive Sticker Labels in Roll Form having consistence 3 mm gaps between the 2 labels.
Label Material Self Adhesive Paper Labels
Label Roll Outer Diameter Maximum 300 mm
Label Core ID 75 mm
Label Dispensing Accuracy + 1 mm
Working Height 860 mm (+/-50 mm)
Conveyor Length 6 Feet
Silent Feature Ø  Separate motor for individual operation like bottle separation, wrapping label, dispenser, conveyor speed

Ø  Separate AC drive for individual operation

Ø  Compact and user friendly Machine

Ø  Wheel type Up-down movement system

Ø  Castor wheel for machine movement.

Ø  No Label Data Input/retrievals require for any Label Size.

Ø  No Change Parts for Product and Label size.

Ø  Virtually Maintenance free machine.

Ø  Easy to change label application height.

Ø  User Friendly Label Placing Adjustments.

Ø  Suitable for On-Line Inkjet and Contact Coding System.

Ø  Suitable for Partial Labeling.

Ø  Built In A.C. Variable Frequency Drive System.



MACHINE’S MATERIAL OF CONSTRUCTION

PARTICULAR SPECIFICATION
Machine Main Base Frame Stainless Steel 304 Pipe Structure
Machine Coverings Complete in Stainless Steel 304
Product Contact Parts Stainless Steel 304
Non Contact Parts Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable)
Conveyor Slat Stainless Steel 304 Slat with Nylon Strips on Side
Conveyor Shafts Mild Steel with Hard Chrome or Zinc Plating
Conveyor Sprockets Mild Steel or Nylon
Bearings SKF / Niche / Equivalent
Plating(Wherever Applicable) Zinc / Hard Chrome / Blackening
Wrapping Belt End Less Sponge Coated Wrapping Belt
Wrapping Guide Sponge Coated Wrapping Guide
Bottle Separation / Spacing Unit Aluminum Roller (Silicon Covered)
Guide Rod & Pin Stainless Steel 304
Dispenser Rollers Rubber Molded + Aluminum + Knurling Rollers
Wrapping Unit Up & Down Screw Based UP & DOWN Assembly
Dispenser Unit Up & Down Screw Based UP & DOWN Assembly
