Shree Bhagwati (1996) is a leader in manufacturing square mineral water bottle front and back labeling machines for the chemical, pharmaceutical, cosmetic, ayurvedic, herbal, and FMCG industries. Our machines are engineered to deliver precision, speed, and reliability for high-volume production environments.
Our square mineral water bottle front and back labeling machine is part of our advanced range of top labeling equipment. These machines are widely used across food, pharmaceutical, cosmetics, and Pet Food Labeler Machine applications, where accurate front and back labeling is critical. We support a wide range of labeling formats including round, flat, oval, square, top labeling, and security seal labeling, customized as per customer requirements. We offer cost-effective customized labeling solutions compared to industry standards nationwide.

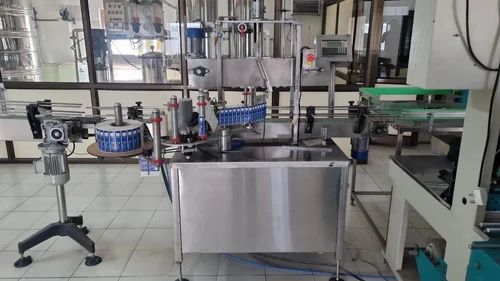

The square mineral water bottle front and back labeling machine features a unique single-point synchronized speed control system with flexible multi-drive applications. The inbuilt automatic label length detection system eliminates the need for manual label data entry, reducing setup time, minimizing machine downtime, and ensuring higher production efficiency.
This flat bottle and jar sticker labeling machine is suitable for glass, plastic, aluminum, PET bottles, and jars used in distilleries, food processing, pharmaceuticals, cosmetics, mineral water, FMCG products, pesticides, and Pet Food Labeler Machine lines where larger label height and length are required.
| Machine Name | Automatic Front and Back Labeling Machine |
| Model | Servo Based Machine |
| Product | Square Mineral Water Bottle |
| Production Speed Per Minute | Up to 80 Products per Minute (Speed Depends up on the Size of the Product and label length) |
| Number of Labeling Dispenser /td> | 2 Labeling Dispenser Head |
| Application | Labeling on front and back side of square container |
| Labels Requirement | Self Adhesive Sticker Labels in Roll Form having consistence 3 mm gaps between the 2 labels. |
| Label Material | Self Adhesive Cromo Paper Labels |
| Label Roll Outer Diameter | Maximum 300 mm |
| Label Core ID | 75 mm |
| Label Dispensing Accuracy | +1 mm |
| Container Holding Unit | Belt Type Spring Based Top Conveyor |
| Working Height | 850 mm (+50 mm) |
| Conveyor Length | 8 Feet |
| Machine Weight | Approx 350 Kgs |
| Machine Dimension | Approx 8 (L) x 7 (W) x 5 (H) – in Feet |
| Transparent Sensor | Extra Cost |
| Salient Features |
|
| Machine Main Base Frame | Mild Steel or Stainless Steel 304 |
| Machine Coverings | Complete in Stainless Steel 304 |
| Product Contact Parts | Stainless Steel 304 |
| Non Contact Parts | Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable) |
| Conveyor Belt | Rubber Belt (Stainless Steel – for heavy products) |
| Conveyor Shafts | Mild Steel with Hard Chrome or Zinc Plating |
| Conveyor Sprockets | Mild Steel or Nylon |
| Bearings | SKF / Niche / Equivalent |
| Plating(Wherever Applicable) | ENP / Zinc / Hard Chrome / Blackening |
| TOP Conveyor Belt | Timing Sponge Belt |
| Guide Rod & Pin | Stainless Steel 304 |
| Dispenser Rollers | Rubber Molded + Aluminum + Knurling Rollers |
| Dispenser Unit Up & Down | Screw Based UP & DOWN Assembly |
