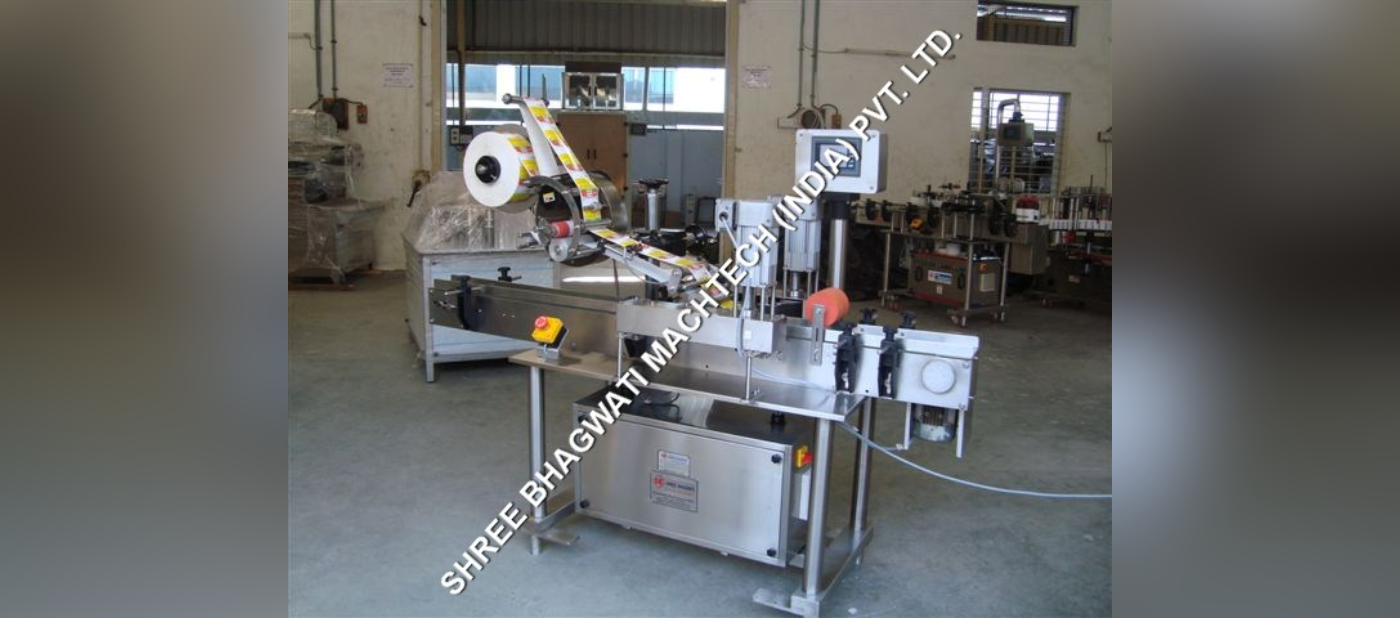

Automatic top sticker labeling machine our top labeling equipment and machinery have involved ourselves in the manufacturing and labeling process of different industries like food, pharmaceutical and cosmetics that require wide range of labeling like round, flat, oval, square, top, security seal as per the requirement. We offer customized labelling machine at a very low price as compared to services provided all over the country.
Automatic top self adhesive labeler machine our self-adhesive sticker labeling machine has its own unique single point like synchronized speed control system and flexible multiple drive application provides. The bottle labelling machine has inbuilt automated label length detection systems that eliminates the need for manually feeding and storing of label length data in memory and retrieving the same every time for change of label size & re-starting the machine. This in turn saves valuable time, avoiding machine-down time, and helps achieve higher production.
Application : carton/boxes, papers/pouches, flat/round/cylindrical containers.
The automatic horizontal label applicator machine is one of the most users friendly. The labeller machine incorporated with latest servo or sophisticated micro processor control label dispensing system with user friendly sensing system for label and product. It is suitable for sticker labeling on bottle, jars and other flat surface container. It is capability of labellers is up to 300 products per minute depending on products diameter and label size. Our model – 60 / 120 /150 /250/ 300/ 400 /600 products per minute depend application and systems.
Self-adhesive bottle labeling machine with speed available below:
| Machine Name | Automatic Top Labeling Machine |
| Model | Servo Based Machine / Stepper Based Machine |
| Product | Petroleum Jelly Jar |
| Production Speed Per Minute | Up to 60 Products per Minute (Speed Depends up on the Size of the Product and label length) |
| Application | Labeling on Top side of container |
| Labels Requirement | Self Adhesive Sticker Labels in Roll Form having consistence 3 mm gaps between the 2 labels |
| Label Material | Self Adhesive Cromo Paper Labels |
| Label Roll Outer Diameter | Maximum 300 mm |
| Label Core ID | 75 mm |
| Label Dispensing Accuracy | +1 mm |
| Container Holding Unit | Belt Type Feeder from both sides (If require) |
| Working Height | 850 mm (+50 mm) |
| Conveyor Length | 6 Feet |
| Machine Weight | Approx 350 Kgs |
| Machine Dimension | Approx 6 (L) x 7 (W) x 5 (H) – in Feet |
| Transparent Sensor | Extra Cost |
| Salient Features |
|
| Machine Main Base Frame | Mild Steel or Stainless Steel 304 |
| Machine Coverings | Complete in Stainless Steel 304 |
| Product Contact Parts | Stainless Steel 304 |
| Non Contact Parts | Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable) |
| Conveyor Belt | Rubber Belt (Stainless Steel – If require) |
| Conveyor Shafts | Mild Steel with Hard Chrome or Zinc Plating |
| Conveyor Sprockets | Mild Steel or Nylon |
| Bearings | SKF / Niche / Equivalent |
| Plating(Wherever Applicable) | ENP / Zinc / Hard Chrome / Blackening |
| Feeder Belt | Timing Sponge Belt |
| Guide Rod & Pin | Stainless Steel 304 |
| Dispenser Rollers | Rubber Molded + Aluminum + Knurling Rollers |
| Dispenser Unit Up & Down | Screw Based UP & DOWN Assembly |
