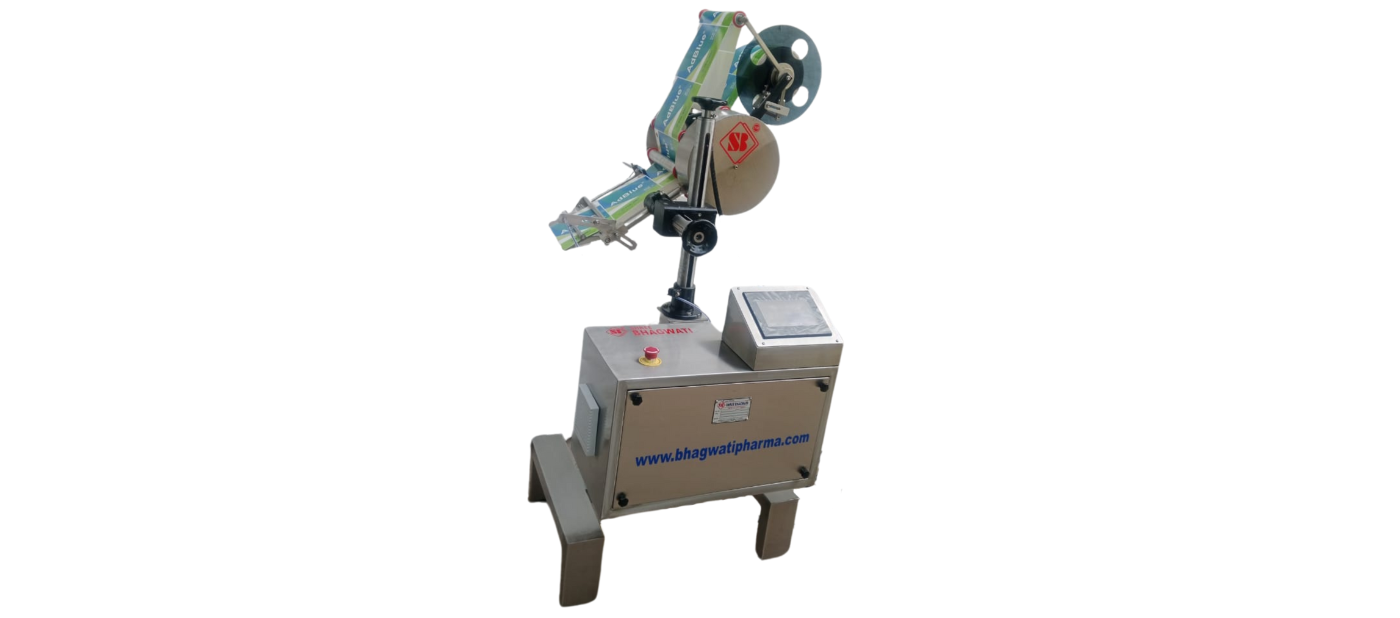

Table Top Sticker Labelling Machine
Be Assured of Top Quality for Top & Bottom Side Labelling
This table top sticker labeling machine is the most up to date model, in our range of labeling equipments. The complete structure of this robust table top sticker labelling machine is made from superior quality stainless steel. It is highly suitable for labeling round bottles, as well as other shaped containers that have a packing size of approximately 30 ml to 1500 ml. This multi purpose table top sticker labeling machine can be utilized to label aluminum, glass, plastic, HDPE, LDPE, PP, PET, tin containers or bottles; which are suitable for pharmaceuticals, foodstuffs, beverages, distillery, cosmetics, pesticides, chemicals, agro chemical, and other similar products. Further, the most important element of this ultra modern labeling machine is that the user does not have to change the parts, while changing the size of the label or the container. This model SB LABEL – 01, has a capacity to label 15 to 20 labels in one minute, depending on the size of the labels and the containers. Moreover this compact equipment is manufactured according to the GMP standard. It is a highly user friendly machine and is virtually maintenance free. Hence this simple sticker labeling equipment can also be easily operated by a semi skilled person. Even the height of this unique machine can be simply adjusted based on the dimensions of the products. This latest model also comprises of a fiber optic based, label gap sensor and a product sensor. Further, it also has a break assembly for preventing variation. Besides this, the sticker labelling equipment can be used for labeling bottles and containers with various diameters. The machine also includes a labeling roller, depending on the length and width of the label. And a label roll with a diameter of 300 can be also installed in this equipment. Moreover, any type of coder can be easily attached with this table top sticker labeling machine.
Any type Aluminium, Composite, HDPE, Pet, Tin or Glass bottle Suitable for Pharmaceuticals, Food, Beverage, Distillery, Cosmetics, Pesticides, Chemicals, Agro Chemical and similar products. You have to put the bottle manually on wrapping unit for label application.
SPECIFICATION OF THE EQUIPMENT MACHINE’S BASICS
| Model | SB LABEL – 01 |
| Bottle size (Ø) | 15mm Ø to 90mm Ø |
| Output speed | 15 to 20 BPM |
| Label size ( H x L ) | Min 15 and 250 mm |
| Machine Name | Stand Alone Label Applicator |
| Suitable for Products | Plastic Container / Box/ Carton / Sheet / Paper / Empty Container |
| Distance between two products | On customer’s scope |
| Application | Labeling on Straight Surface of product. |
| Labels Requirement | Self Adhesive Sticker Labels in Roll Form having consistence 3 mm gaps between the 2 labels. |
| Label Material | Self Adhesive Paper Labels |
| Label Roll Outer Diameter | Maximum 300 mm |
| Label Core ID | 75 mm |
| Label Dispensing Accuracy | +1 mm |
| Power Consumption | 0.2 KW |
| Power Supply | Single Phase, 230V, 50 Hz |
| Net Weight | 150 kgs |
MACHINE’S MATERIAL OF CONSTRUCTION
| Machine Main Base Frame | Mild Steel Pipe Structure |
| Non Contact Parts | Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable) |
| Bearings | SKF / Niche / Equivalent |
| Dispenser Rollers | Rubber Molded + Aluminum + Knurling Rollers |
| Dispenser Unit Up & Down | Screw Based UP & DOWN Assembly |
- The unit is made compact & versatile as per GMP norms.
- The whole structure is made of SS304.
- Can be operated by semi-skilled operator.
- The machine can be utilized for various sizes (Diameter) of bottles.
- User friendly and very less maintenance required.
- Height can be easily adjusted as per the products.
- Any type of coder can be attached
- It consists of fibre optic based label gap sensor & product sensor.
- Break assembly to avoid variation.
- Label roll of 300 Diameter can be installed.
