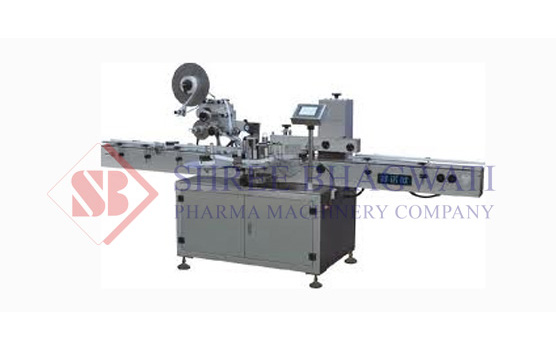

Top Sticker labeling machine

Not only Single, We Take Care of Both Side of Your Labeling Needs

This totally automatic model of the top sticker labeling machine is one of the most user friendly equipment. It is highly appropriate for applying sticker labels on the top side of various type, shape, and size of containers. Moreover, the conveying system can be arranged either as the belt type, or the slant type along with a pusher, depending on the size and shape of the container. This versatile machine can be utilized to label a wide range of products and containers, such as rigid and flexible bottles, boxes, blisters, books, cassettes, corrugated boxes, diaries, jar lids, etc. It can easily label at a varying speed of 100, 200, and 300 containers in a single minute, based on the feeding arrangement. Further, the configuration of this ultra modern equipment can also be designed to match the particular needs; for example, folding the label on 2 or 3 sides, etc. Actually this model is even utilized for FFS ampoule cassettes for top, as well as bottom labeling with a special configuration. It also has an automated product alignment system, which is synchronized with the top holding belt system, for assuring maximum stability and vertical positioning of the containers. This machine also incorporates the latest label dispensing system and a simple sensing system for labels and products. In fact this contemporary equipment caters to the requirements of majority of the users of sophisticated packaging lines. Besides the equipment includes an inherent and unique single point synchronized speed control system. It has easy to use adjustments, and requires minimum change of parts or tools. This modern model integrates a preset label length detection system that avoids the manual feeding and storing of the label length information into the memory, and retrieving the same data for changing the label size and restarting the equipment.


Machine Name Top Sticker labeling machine
Model Servo Model and Stepper
Production Speed Per Minute 30 – 300 Containers per Minute (Speed Depends up on the length of label and diameter of product and Operator Skills).
Suitable for Products Box / carton / pouch / paper sheet / plastic container / compass / lunch box
Loading and unloading Manually (one by one)
Application Labeling on top side of product
Sensors For Product and Paper Label

(Transparent label – Extra Cost)

Label Accuracy Controlling System Servo Motor
Operating System HMI + PLC controlling
Labels Requirement Self Adhesive Sticker Labels in Roll Form having consistence 3 mm gaps between the 2 labels.
Label Material Self Adhesive Paper Labels
Label Roll Outer Diameter Maximum 300 mm
Label Roll Direction Left to Right
Label Core ID 75 mm
Label Dispensing Accuracy +1 mm
Working Height 860 mm (+/-50 mm)
Conveyor Length 6 Feet
Conveyor Movement Direction Left to Right
Machine Weight Approx 300 Kgs
Machine Dimension Approx 6 (L) x 5 (W) x 6 (H) – in Feet


Machine Main Base Frame Stainless Steel 304 Pipe Structure
Machine Coverings Complete in Stainless Steel 304
Product Contact Parts Stainless Steel 304
Non Contact Parts Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable)
Conveyor Slat Rubber belt (Stainless Steel – for heavy box)
Conveyor Shafts Mild Steel with Hard Chrome or Zinc Plating
Conveyor Sprockets Mild Steel or Nylon
Bearings SKF / Niche / Equivalent
Plating(Wherever Applicable) Zinc / Hard Chrome / Blackening
Feeder Belt (If required for customer’s product) Timing Sponge Belt
Guide Rod & Pin Stainless Steel 304
Dispenser Rollers Rubber Molded + Aluminum + Knurling Rollers
Dispenser Unit Up & Down Screw Based UP & DOWN Assembly
