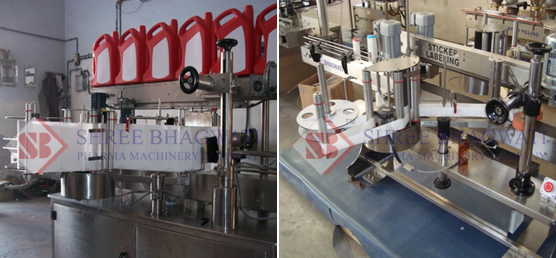

Automatic Self Adhesive Double Side Sticker Labelling Machine

SBSL – 120D

Not only Single, We Take Care of Both Side of Your Labeling Needs

The automatic self adhesive double side sticker labeling machine is very robust and highly sophisticated. It has a stainless steel matt finish on the complete body as well as, on the pipe structure and mainframe. In fact this model SBSL – 120D is regarded as one of the most user friendly equipments. Moreover, it is very accurate and long lasting. The machine also includes several other salient characteristics. It is basically utilized for labeling on two sides of any type of flat containers with various dimensions. This simple and modern equipment has the capacity to label maximum 40 containers in one minute, based on the size of the products and labels. Further, this totally automatic model is also equipped with a belt spacing device that results in a no parts changing system. This belt spacing device enables even positioning and precise spacing between the two containers. Besides this, the belt drive mechanism also helps to firmly hold the containers from the top, in order to perfectly label the containers on the front as well as back side. This elegant equipment even has an electronic product sensor for sensing the containers, and releasing the label from the self adhesive label roll. It also incorporates a batch printing device that assists in printing the batch number, and other related matter such as the manufacturing date, expiry date, and price, etc. on the label. Moreover, it even has a stationary rubber pad and a rubber pressing belt which helps to assure that the label is fixed neatly and accurately. This machine is highly suitable for labeling corrugated, glass, plastic, PET, and tin containers. The equipment also requires comparatively very less down time for change over of parts or tools. Besides, this labeling machine also comes with a complete security package including the counter.
Labelling accuracy ±1mm
PLC Programmable Logic Controller Unit – DELTA Make
Touch Screen Delta Make Touch screen
Stepper Motor Sanyo denki stepper motor – Japan make
Servo Motor Panasonic / Delta Make
Microprocessor Microprocessor controller by Bhagwati make
Sensors ( Product / Label ) Leuze – USA or Sick Germany make
AC Drive ( Variable Speed) Delta Make
All Electrical / Electronic cables Labb – Germany make
Pneumatic cylinders SMC / Festo make
Direction of Movement. Left to Right
Output / Min Up to 40 Label/min.(Depending on the size of the bottle or the label length)
Electrical Motor. a) 0.25 HP / 1400 RPM For Conveyor Drive
b) 0.25 HP / 1400 RPM for Pressing Device Drive.
c) 6 VDC X 2 Nos Stepper Motor.
Height of Conveyer 860 mm to 910 mm
Power Characteristics. 230 Volts AC 50 Hz.
Construction. Top stainless steel matt finish & S. S. Pipe structure is covered with S.S. 304 sheet.
Compressor Air. 4 to 6 Bars. (Only for printing device)
Label Roll Diameter. Max. 300 mm X ID 75 mm
Label accuracy :±1mm

MACHINE’S MATERIAL OF CONSTRUCTION

Machine Main Base Frame Mild Steel or Stainless Steel 304
Machine Coverings Complete in Stainless Steel 304
Product Contact Parts Stainless Steel 304
Non Contact Parts Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable)
Conveyor Belt Rubber Belt (Stainless Steel – for heavy products)
Conveyor Shafts Mild Steel with Hard Chrome or Zinc Plating
Conveyor Sprockets Mild Steel or Nylon
Bearings SKF / Niche / Equivalent
Plating(Wherever Applicable) ENP / Zinc / Hard Chrome / Blackening
TOP Conveyor Belt Timing Sponge Belt
Guide Rod & Pin Stainless Steel 304
Dispenser Rollers Rubber Molded + Aluminum + Knurling Rollers
Dispenser Unit Up & Down Screw Based UP & DOWN Assembly
  • High Production Speeds.
  • Suitable for any type of Flat Container
  • Container hold from top for perfect & accurate labelling.
  • Stainless steel 304 construction.
  • Accurate label placement.
  • Full Security Package including counter.
  • Very less down time for change over.
  • Suitable for Glass, Plastic, Pet, Tin, Corrugated containers.
