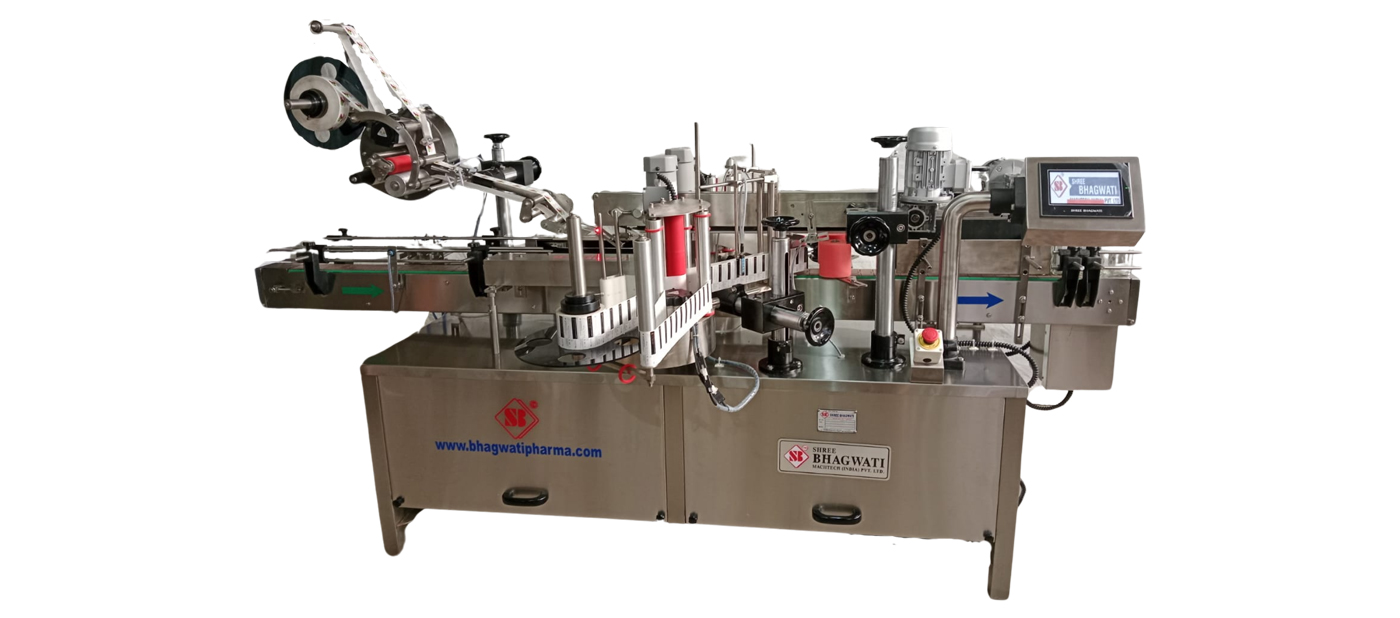

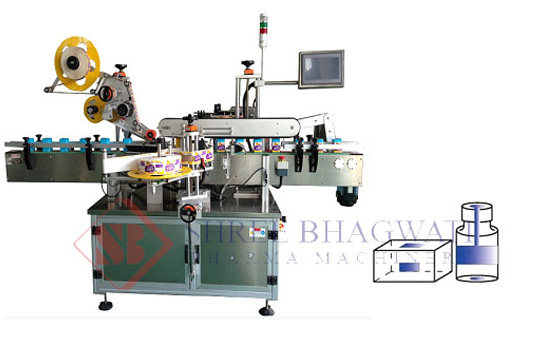

Top and Side Labeling Machine Two Head Label Applicator Machine for Bottles
Be Assured of Top Quality for Top & Bottom Side Labelling
Labeling machine is used to apply labels to various products such as Ampoules, Vials, Bottles, Jars, Container, Canisters, Cartons, Boxes, Caps packages etc. The labeling machines are also known as labeling systems, labeling equipment, labeling machines, labeler, labeling machinery, label applicator machine for bottles, labelling machinery, labelling machine, labellers, labelling equipment. Many Labelling machines are not only used to dispense or apply labels, but also to print labels.
SPECIFICATION OF THE LABEL APPLICATOR MACHINE FOR BOTTLES LABEL APPLICATOR BASICS
| PARTICULAR | SPECIFICATION |
| Machine Name | Top + Side labeler machine |
| Driving Mode | Servo motor |
| Capacity （pcs/min） | 20-120 |
| Conveyor speed（m/min） | ≤40 |
| The size of label | Width 15-150 mm
Length 15-300 mm |
| The size of label object | Can customized as label objects |
| Nos of Labeling Head | 2 Nos |
| Suitable for Products | PET /Plastic/Glass/ HDPE Bottle |
| Application | Top + Side |
| Labels Requirement | Self Adhesive Sticker Labels in Roll Form having consistence 3 mm gaps between the 2 labels. |
| Label Material | Self Adhesive Paper Labels |
| Label Roll Outer Diameter | Maximum 300 mm |
| Label Core ID | 75 mm |
| Label Dispensing Accuracy | +1 mm (Wrap around Label: +1.5mm) |
| Working Height | 860 mm (+/-50 mm) |
| Conveyor Length | 10 Feet (Size can be changed if require any modification as bottle/jar) |
| Machine Weight | Approx 300 Kgs |
| Machine Dimension | Approx 10 (L) x 5 (W) x 4 (H) – in Feet |
| Printer device | Optional |
LABEL APPLICATOR FOR BOTTLES- MATERIAL OF CONSTRUCTION
| PARTICULAR | SPECIFICATION |
| Machine Main Base Frame | Stainless Steel 304 Pipe Structure |
| Machine Coverings | Complete in Stainless Steel 304 |
| Product Contact Parts | Stainless Steel 304 |
| Non Contact Parts | Stainless Steel / Mild Steel / Aluminum / Teflon (Whichever is applicable) |
| Conveyor Slat | Stainless Steel 304 Slat with Nylon Strips on Side |
| Conveyor Shafts | Mild Steel with Hard Chrome or Zinc Plating |
| Conveyor Sprockets | Mild Steel or Nylon |
| Bearings | SKF / Niche / Equivalent |
| TOP Conveyor Belt | Timing Sponge Belt |
| Plating(Wherever Applicable) | Zinc / Hard Chrome / Blackening |
| Guide Rod & Pin | Stainless Steel 304 |
| Dispenser Rollers | Rubber Molded + Aluminum + Knurling Rollers |
| Dispenser Unit Up & Down | Screw Based UP & DOWN Assembly |
